Reisenauer Plastic Firewall – 28mm

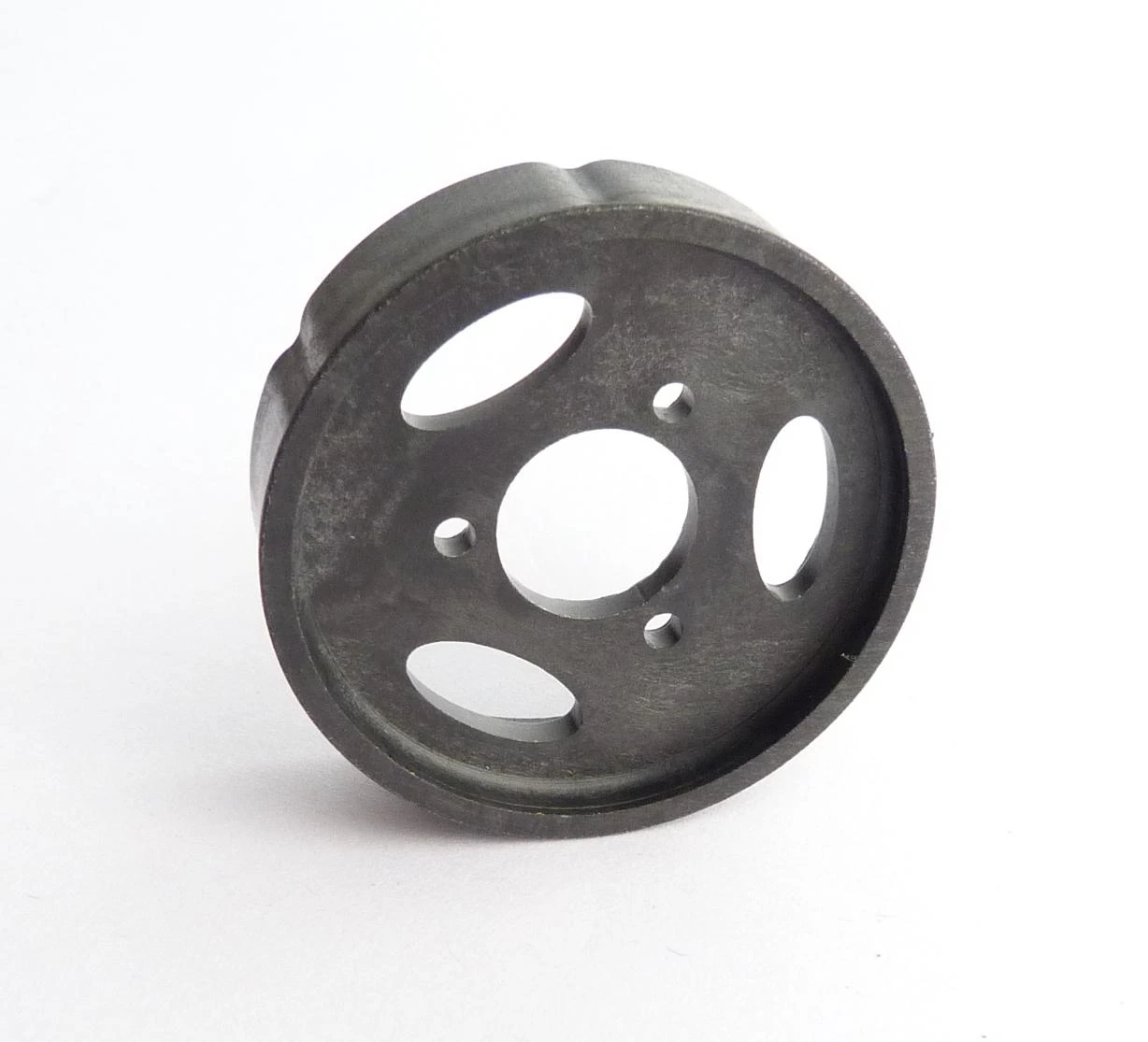

A hard plastic firewall to fit 28 mm outside diameter F5J electric glider fuselages. This is usually also the spinner diameter. Motor/gearbox mounting holes have been pre-drilled for the Reisenauer Micro-Edition gearbox with 3 holes on a 14 mm circle. This is also suitable for some Maxon 4.4:1 gearboxes.

Note the 27.2 mm dimension on these firewalls is the fuselage front inside diameter i.e. the outside size less 2*fuse wall thickness

Reisenauer 28 mm Plastic Firewall Specifications
Fuselage outside/spinner diameter	28 mm
Fuselage inside diameter	27.2 mm
Predrilled holes	3 holes on a 14 mm circle
Weight	1.7 g
