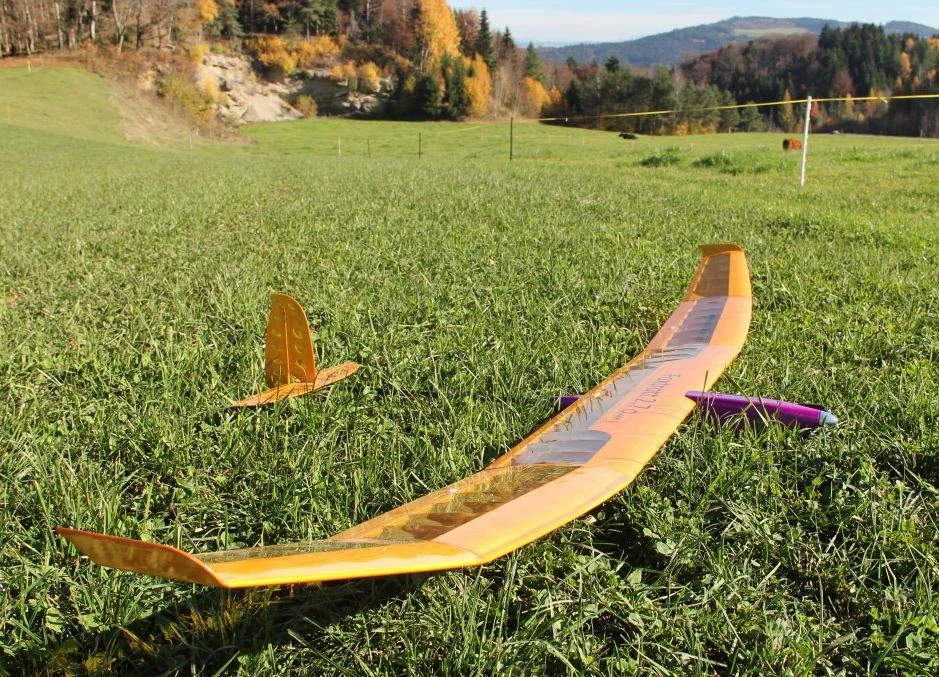

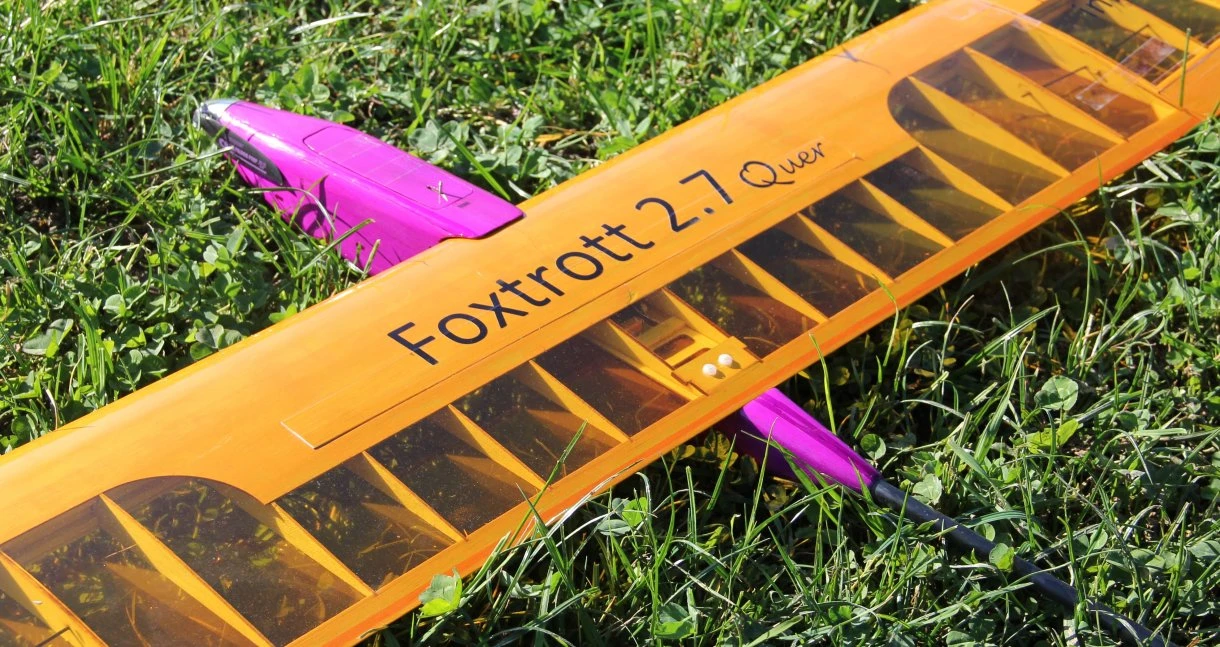

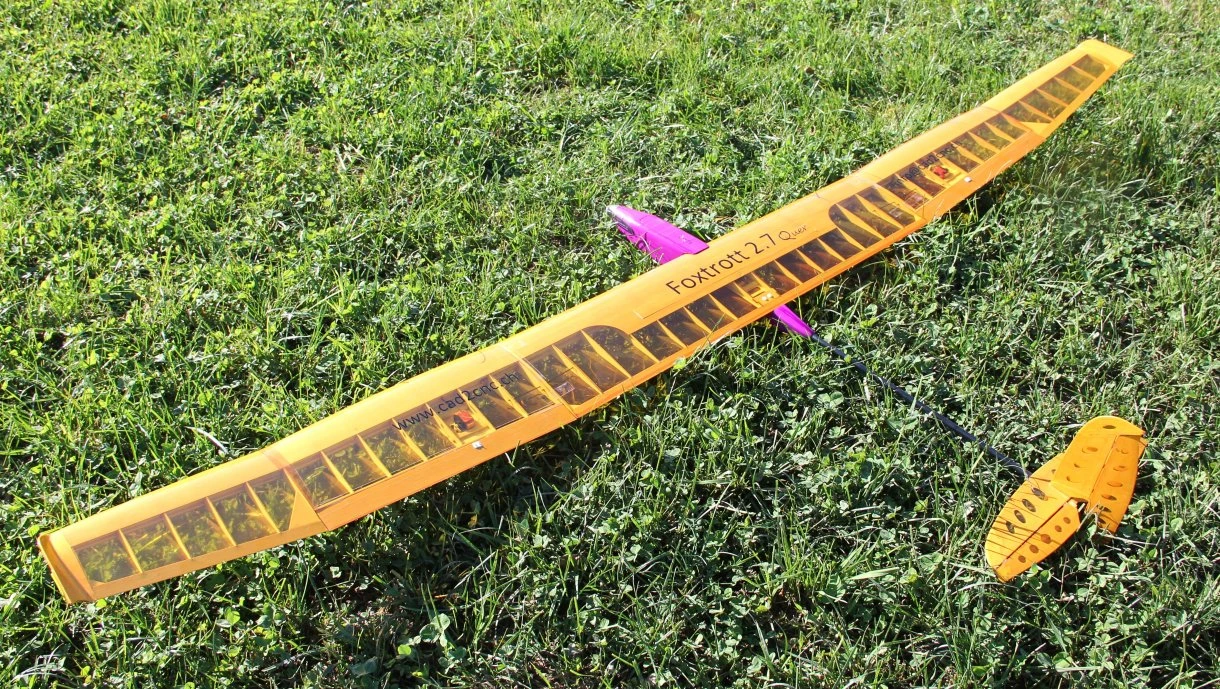

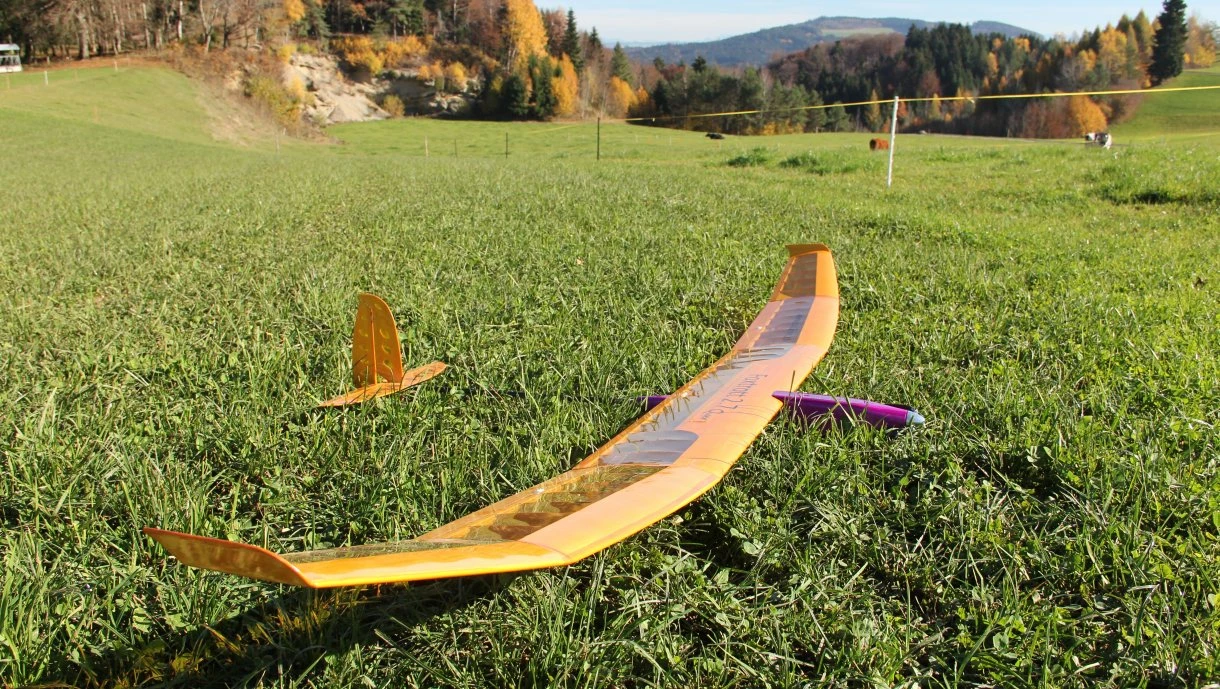

Foxtrott 2.7

The Foxtrott 2.7 is an easy to fly and build 2.7m (107″) span all wood kit. Substantially larger than a 2m model it has a great presence in the air and a performance to match. The three piece wing has generous dihedral for good stability and ailerons and spoilers for good control, safe dethermalising and easy landings.

The good sized fuselage uses a nicely shaped balsa pod with a carbon tube boom to minimise weight and wetted area. The wing has a balsa sheeted Dbox front part for good torsional strength.

The Foxtrott comes with all hardware and a superb full size plan and build manual (in German).

Foxtrott 2.7 Specifications
Wing span	2.7 m	107 in
Wing area	56.8 dm2	880 sq in
Length	122 cm	47.9 in
Flying weight from	1205 g	42.5 oz
Wing loading	21 g/dm	7.0 oz/sq ft
Aspect ratio	12.9
Wing airfoil	S3021 mod
Dihedral (EDA)	12.0º
Spinner Diameter	38 mm
Controls	Rudder, elevator, ailerons, spoiler

Foxtrott 2.7 Typical Weights
Wing centre	300 g	10.6 oz
Wing tips	315 g	11.1 oz
Fuselage pod	75 g	2.6 oz
Tailboom	30 g	1.1 oz
Tailplane & fin	50 g	1.8 oz
Covering	65 g	2.3 oz
Total structure	835 g	29.5 oz
Wiring	20 g	0.7 oz
Receiver	10 g	0.4 oz
Rudder servo	11 g	0.4 oz
Elevator servo	11 g	0.4 oz
Spoiler servo	11 g	0.4 oz
Aileron servos	22 g	0.8 oz
Motor	120 g	4.2 oz
Prop & spinner	25 g	0.9 oz
Battery	140 g	4.9 oz
Flying weight	1205 g	42.5 oz

Recommended Servos
Elevator & rudder	KST X10-710, KST DS145MG, MKS DS6100, KST X08, Blue Bird BMS-125WV, Blue Bird BMS-M15H
Spoiler	KST X10 Mini, KST DS135MG, MKS DS6100, Blue Bird BMS-115HV, Blue Bird BMS-125WV, Blue Bird BMS-M15V
Aileron	KST X10 Mini, KST DS135MG, MKS DS6100, KST X08, Blue Bird BMS-115HV, Blue Bird BMS-125WV, Blue Bird BMS-M15V

Powertrain Recommendations
XPower F2915/12 XLight	3S 800mAh LiPo, 10×5 prop
Powerline Micro 1010	3S 800mAh LiPo, 12×8 prop
Powerline Micro 1015	3S 800mAh LiPo, 15×8 prop
AXI 2217/16 V2 Long	3S 800mAh LiPo, 10×5 prop
Mega 16/15/4	geared 4.4:1 3S 800mAh LiPo, 16×8 prop
Mega 16/15/4	direct drive, 2S 1000mAh LiPo, 7×4 prop
Mega 16/15/5	direct drive, 2S 1000mAh LiPo, 8×4 prop
Dualsky XM2826CA-10 45g outrunner	3S 800mAh LiPo, 10×7 prop (19A, 5.0 m/s)
